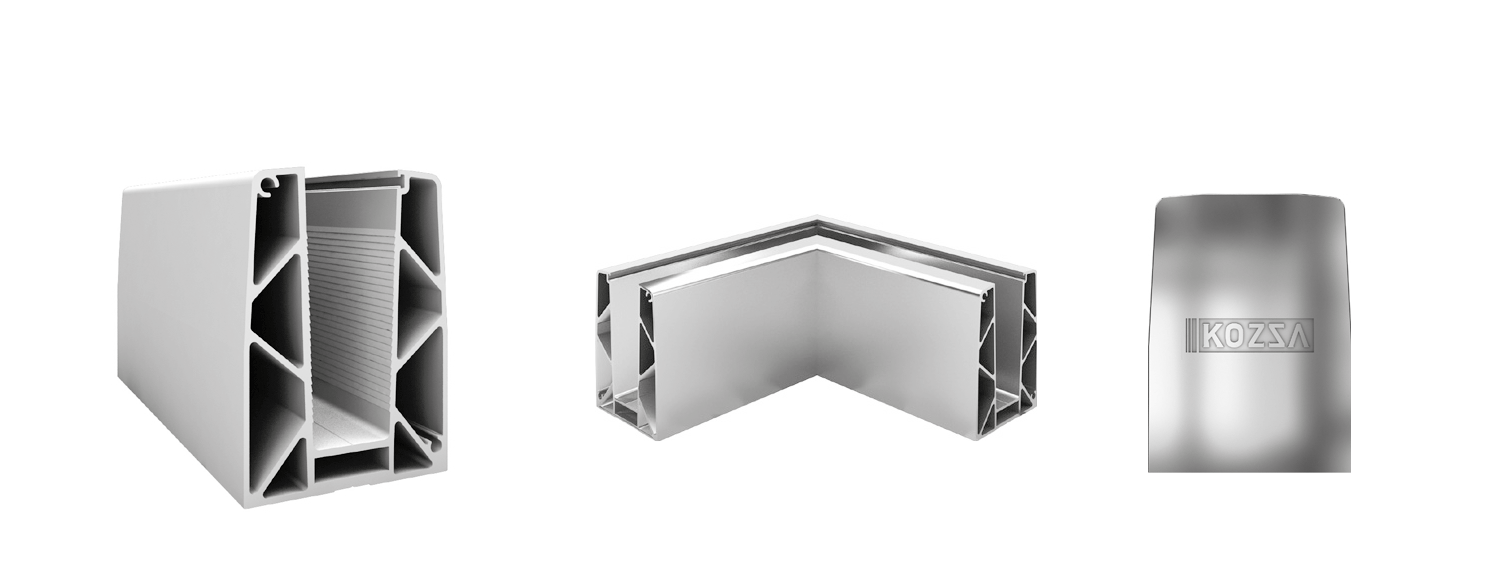

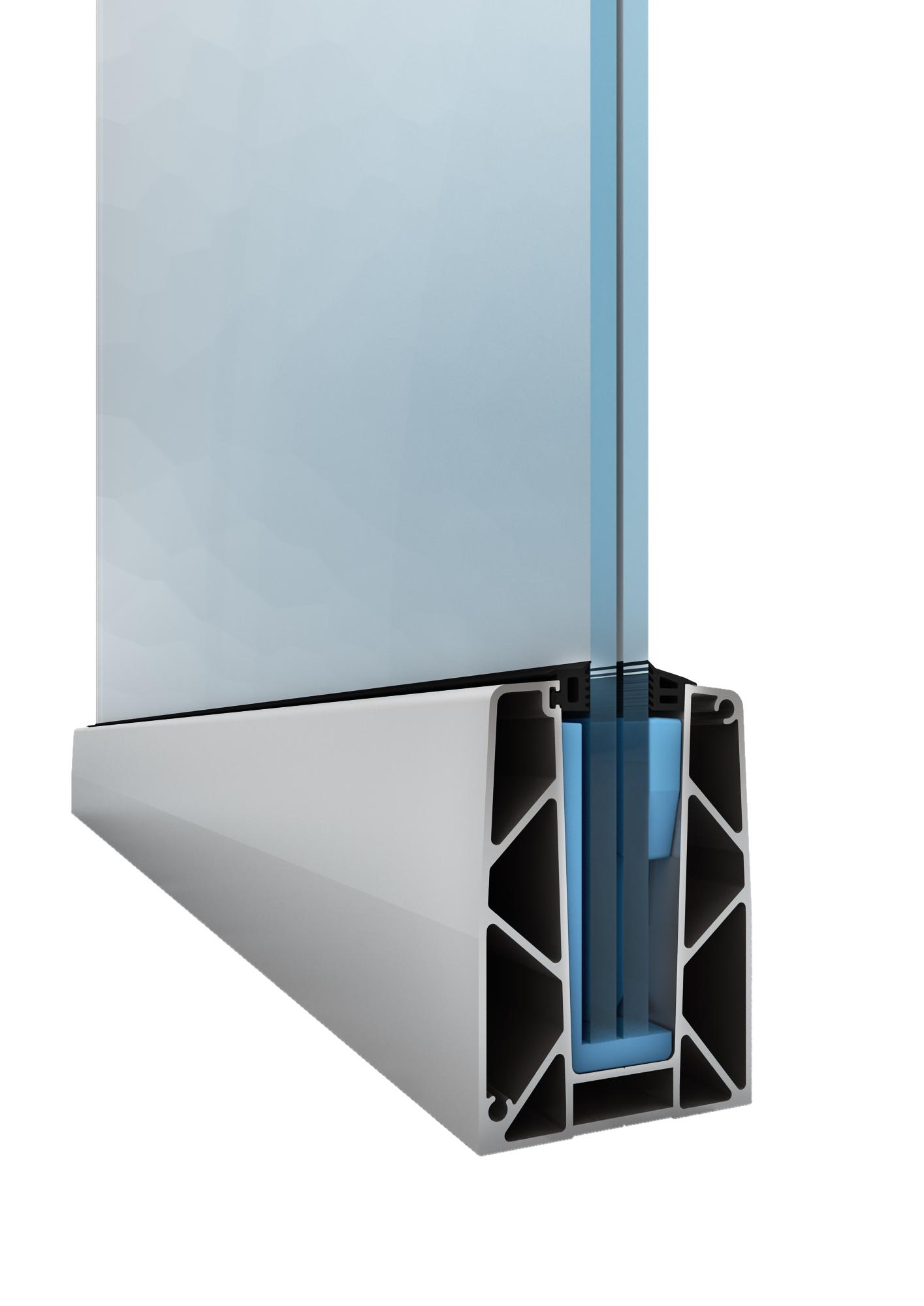

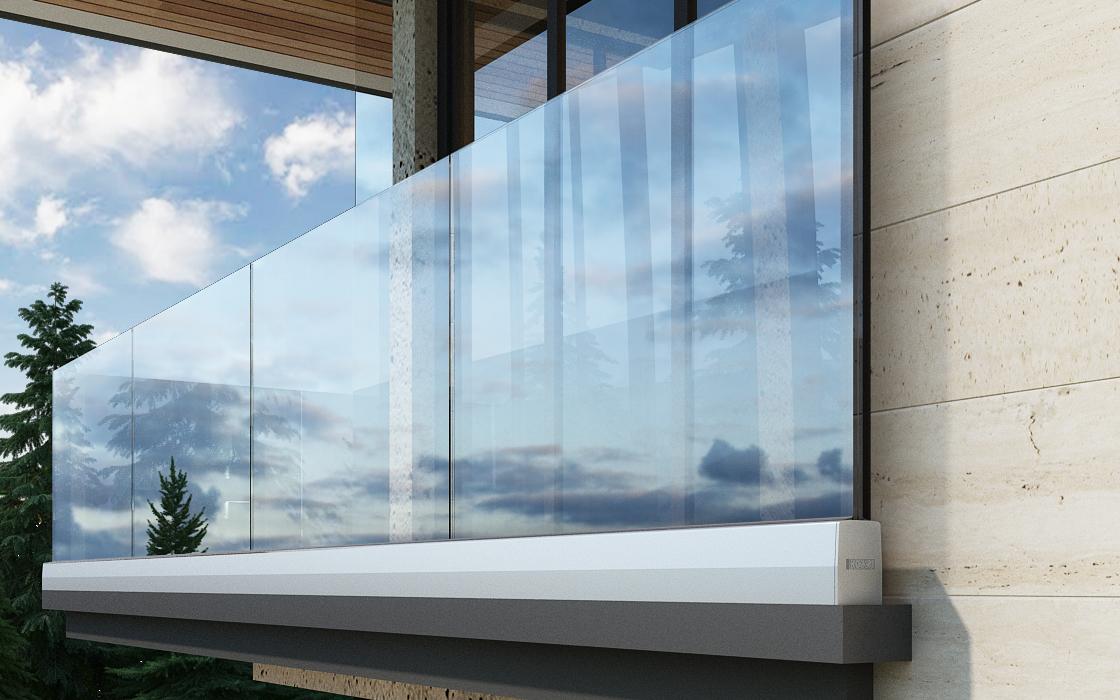

KE 145 series, which is the upper mounting model has been designed in away to meet the anticipation in the site.
The KE 145 series was developed and structured in line with the

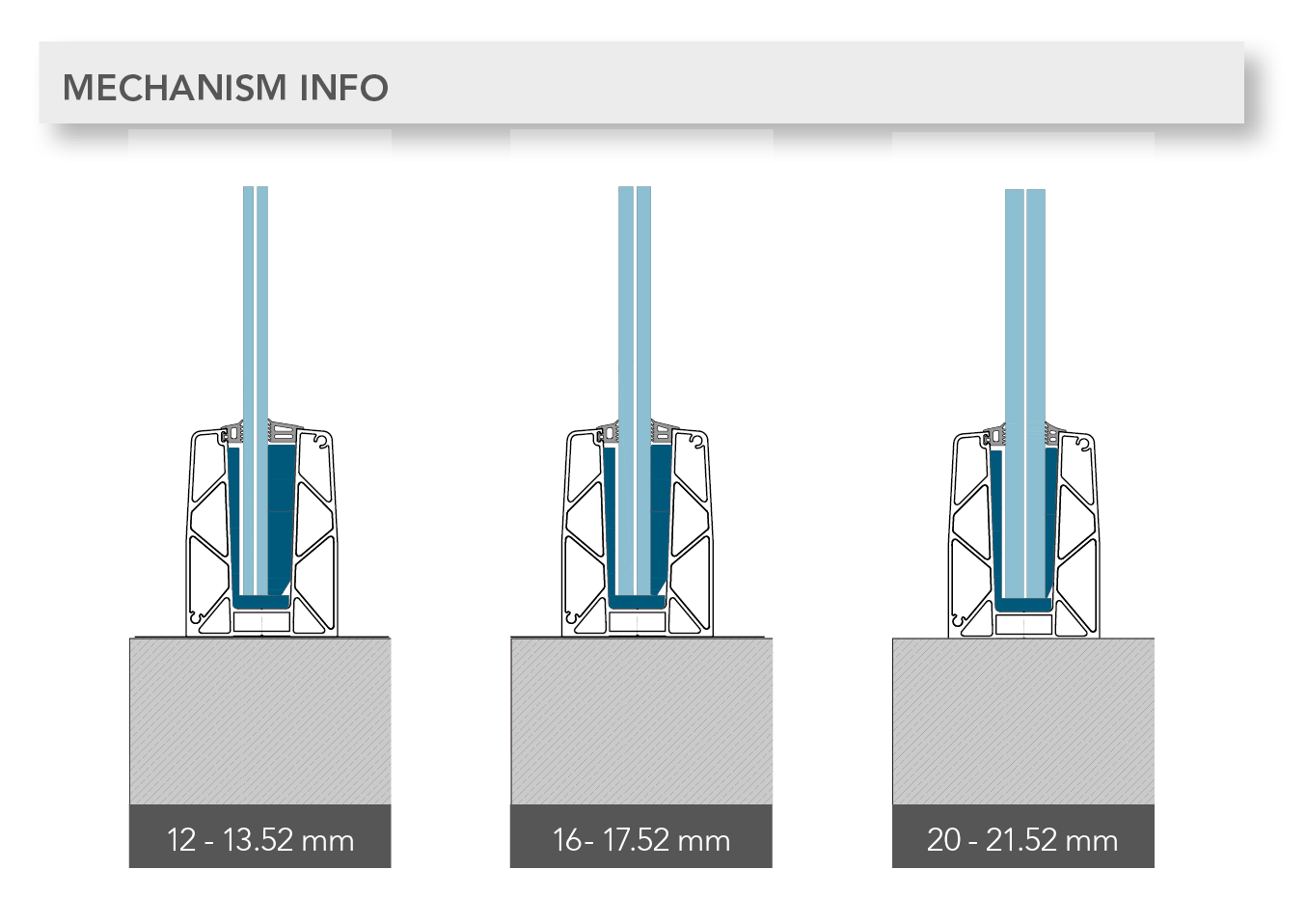

recommendation and demands of architectures in the application field, it maybe used in larger projects such as shopping malls and hotels.The thickness of the glass may be selected optionally between 12-21.52 millimeters.

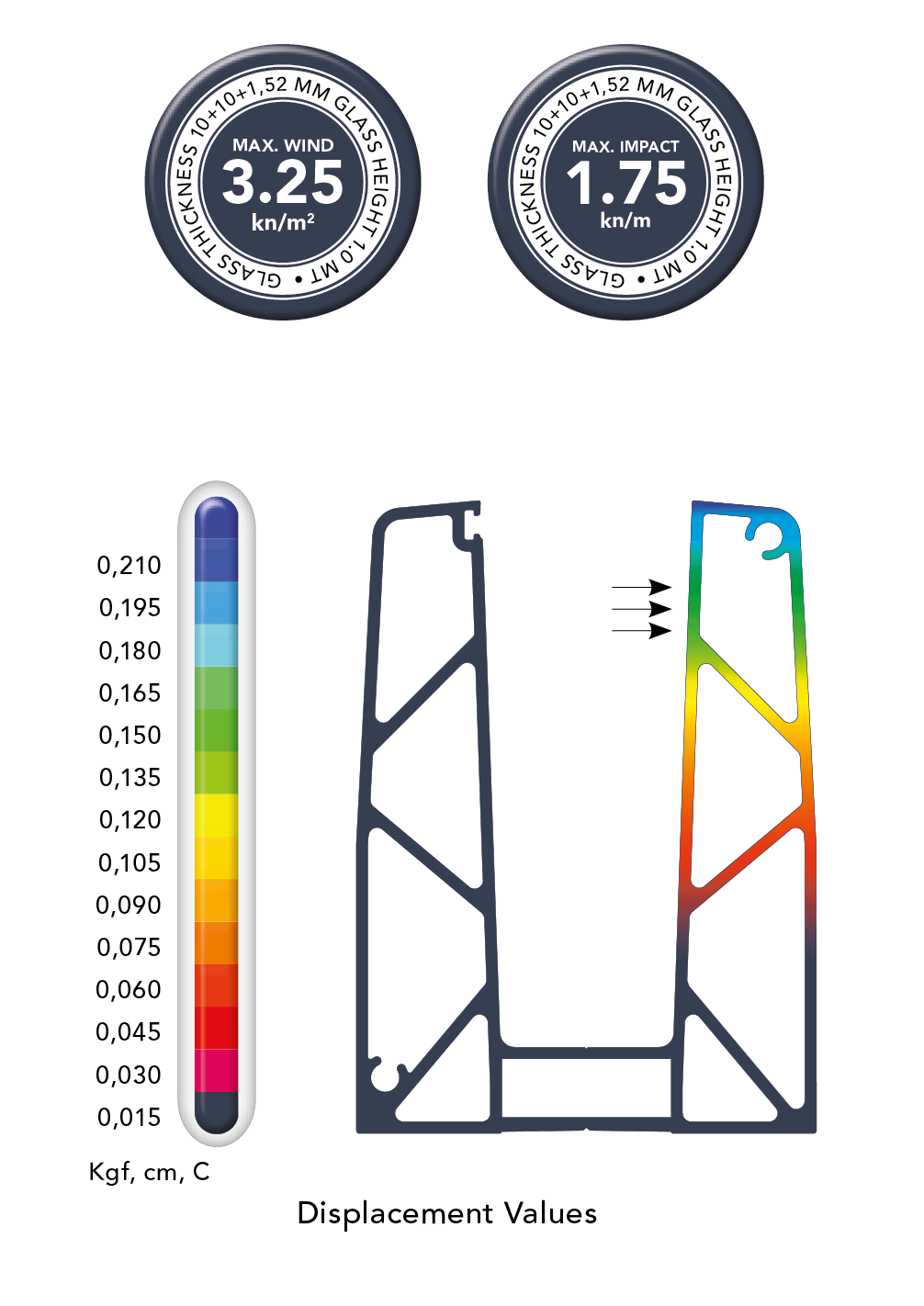

Aluminum alloy EN AW 6063 displacement results for 1 mt base
profile under 500 kg (5000 nt) horizontal load to the highest surface
of the profile.
