KE 140

KE 140

KE 140 series, which is the upper mounting model has been designed in a
way to meet the anticipation in the site.
The KE 140 series was developed and structured in line with the
recommendation and demands of architectures in the application field, it
may be used in larger projects such as shopping malls and hotels.
The thickness of the glass may be selected optionally between 12-21.52 millimeters.


Aluminum alloy EN AW 6063 displacement results for 1 mt base
profile under 130 kg (1300 N) horizontal load to the highest surface of
the profile.

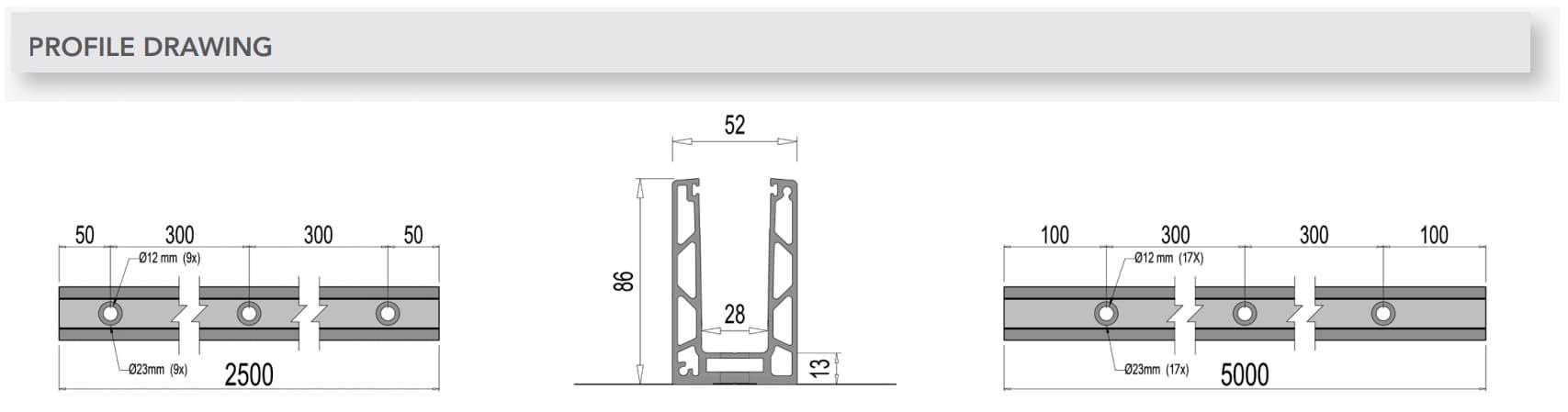

Profile Drawing

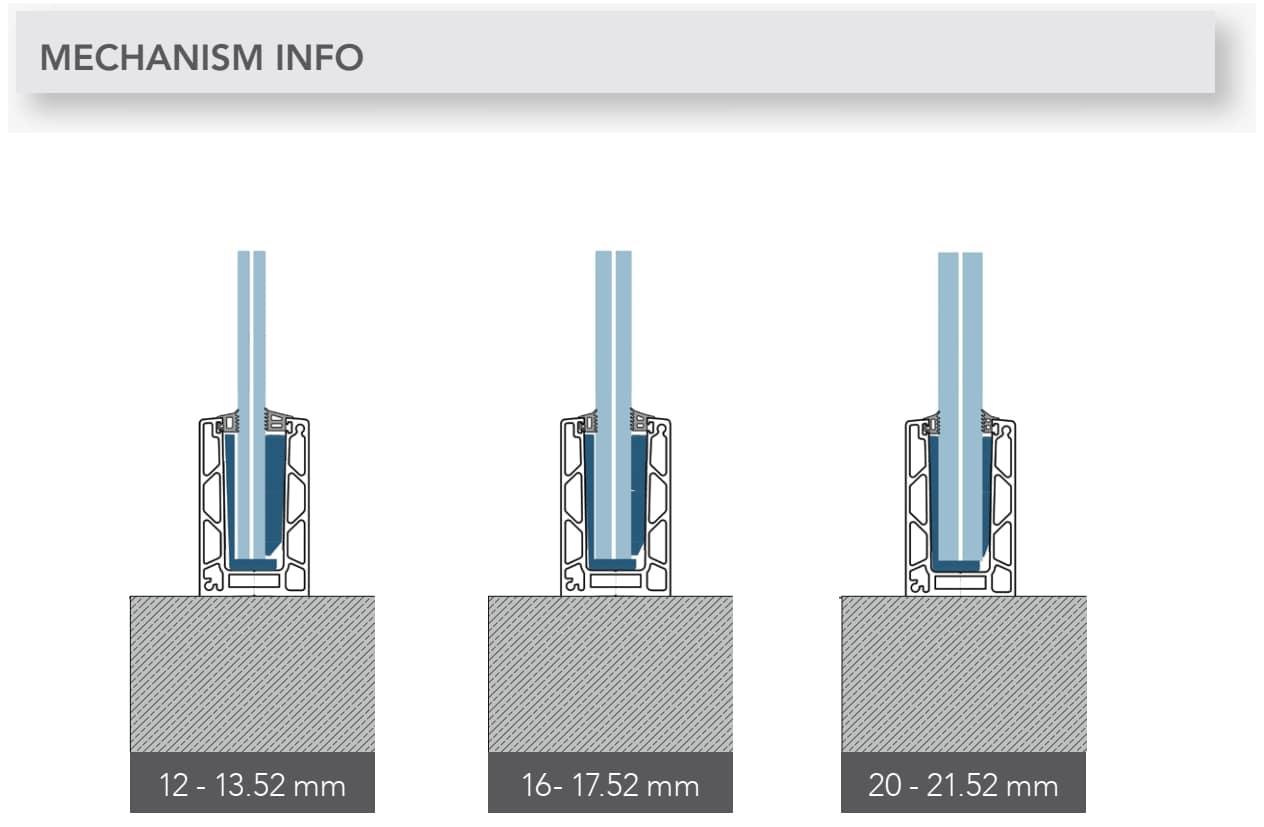

Glassmove İnfo

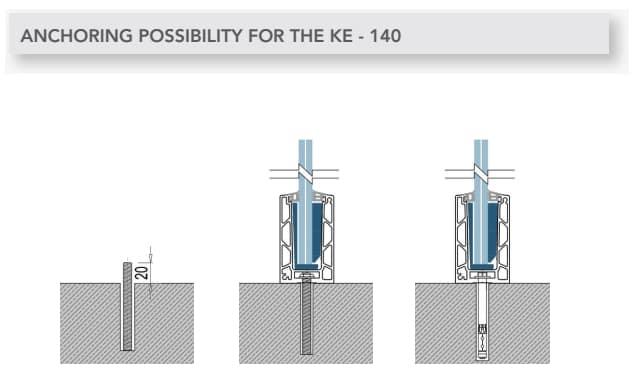

Anchoring Possibility For KE 140

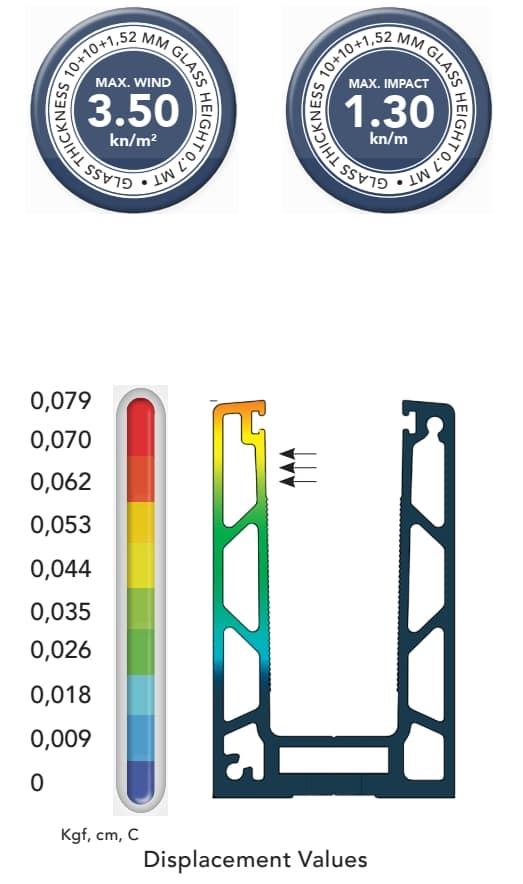

Maximum Wind And Impact Load Capacity Results
