KF 1350

KF 1350

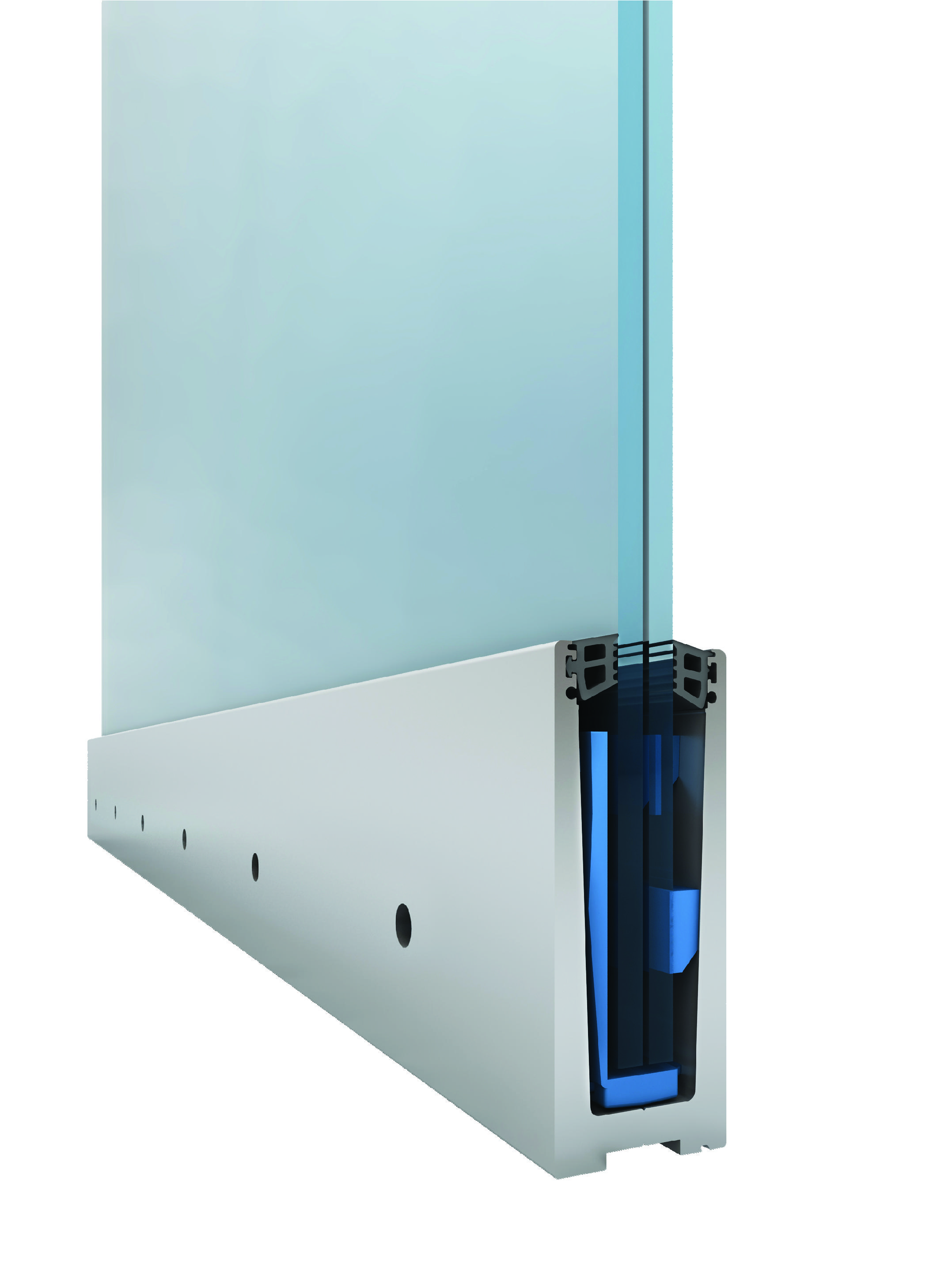

The Glassmove® mechanism, which provides flexibility for the glass is
available in the KF series.The KF 1350 series was developed and structured
in line with the recommendation and demands of architectures in the
application field, and it may be used in larger projects such as shopping malls
and hotels.
Thickness of the glass may be selected optionally between 12 -21.52
milimeters.

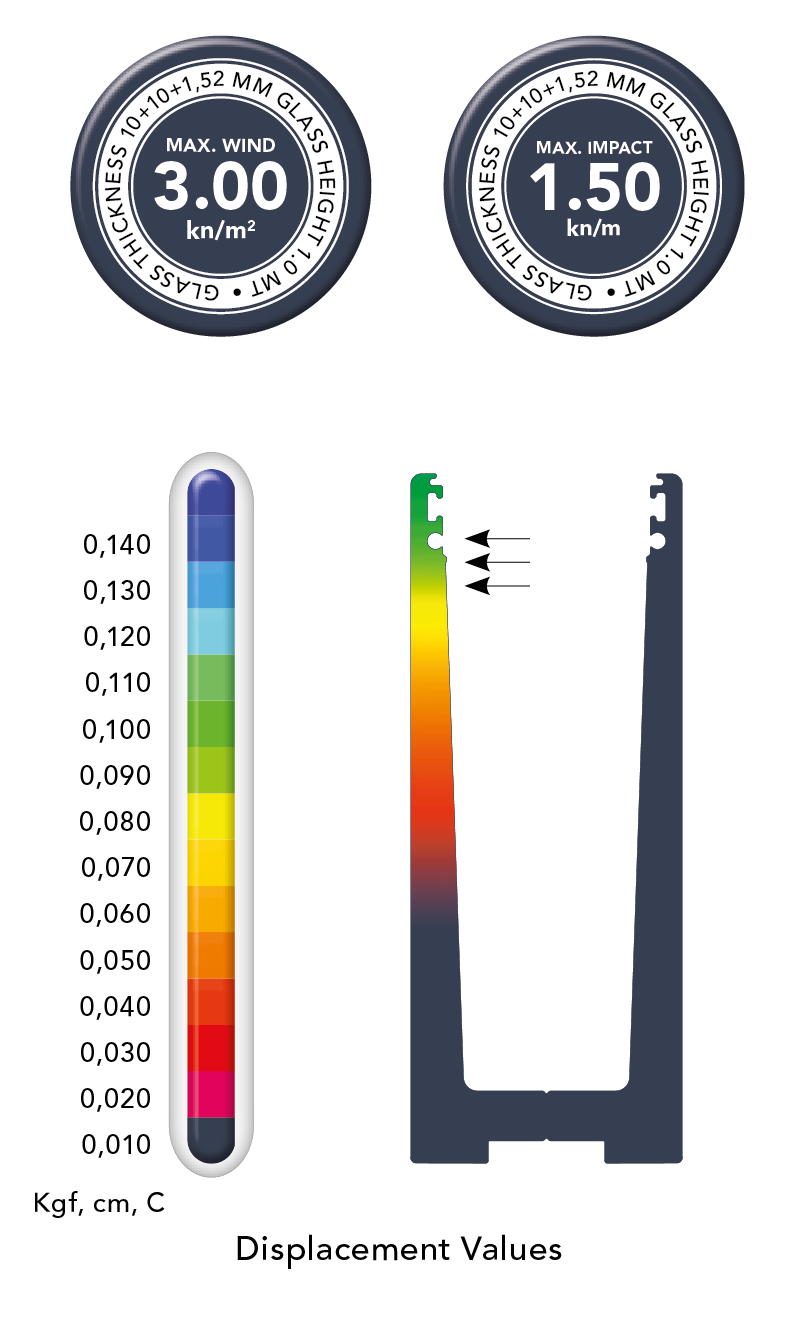

Aluminum alloy EN AW 6063 displacement results for 1 mt base
profile under 500 kg (5000 nt) horizontal load to the highest surface
of the profile.

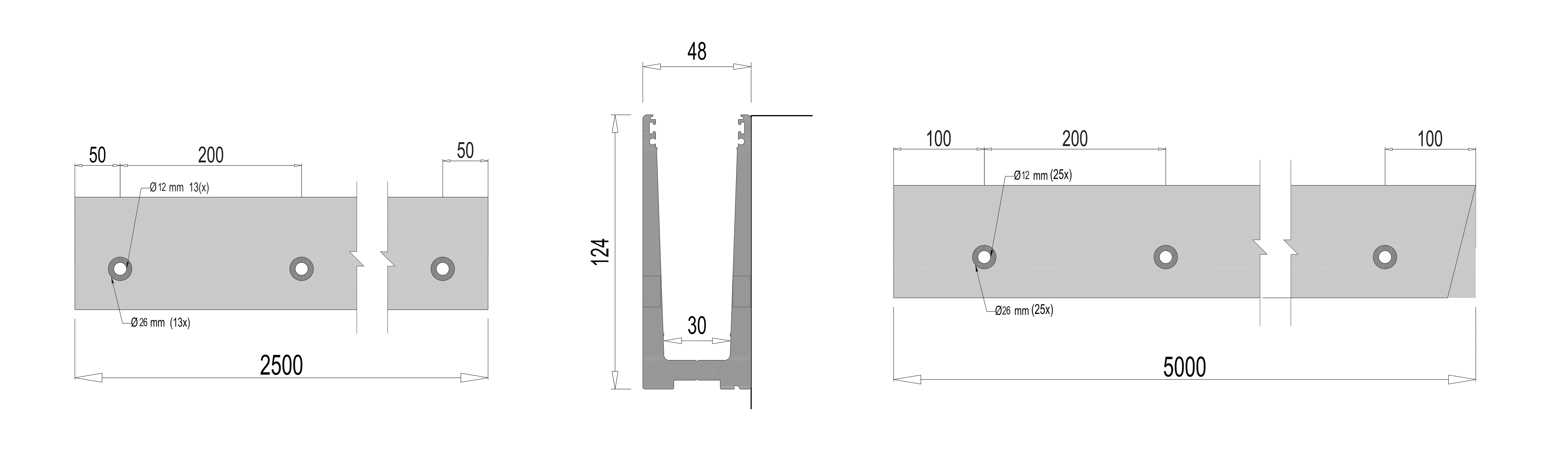

Dessin De Profil

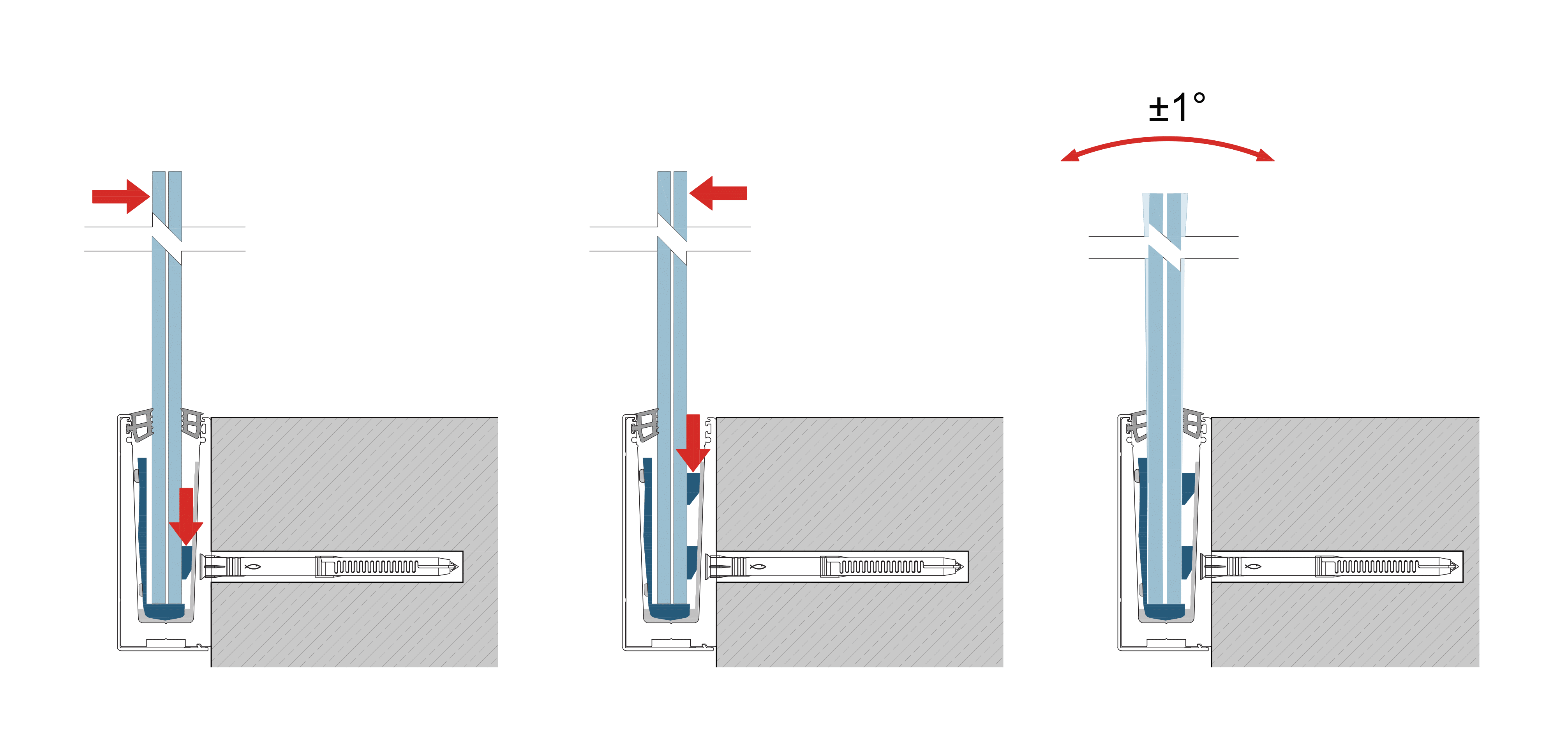

Glassmove Détail

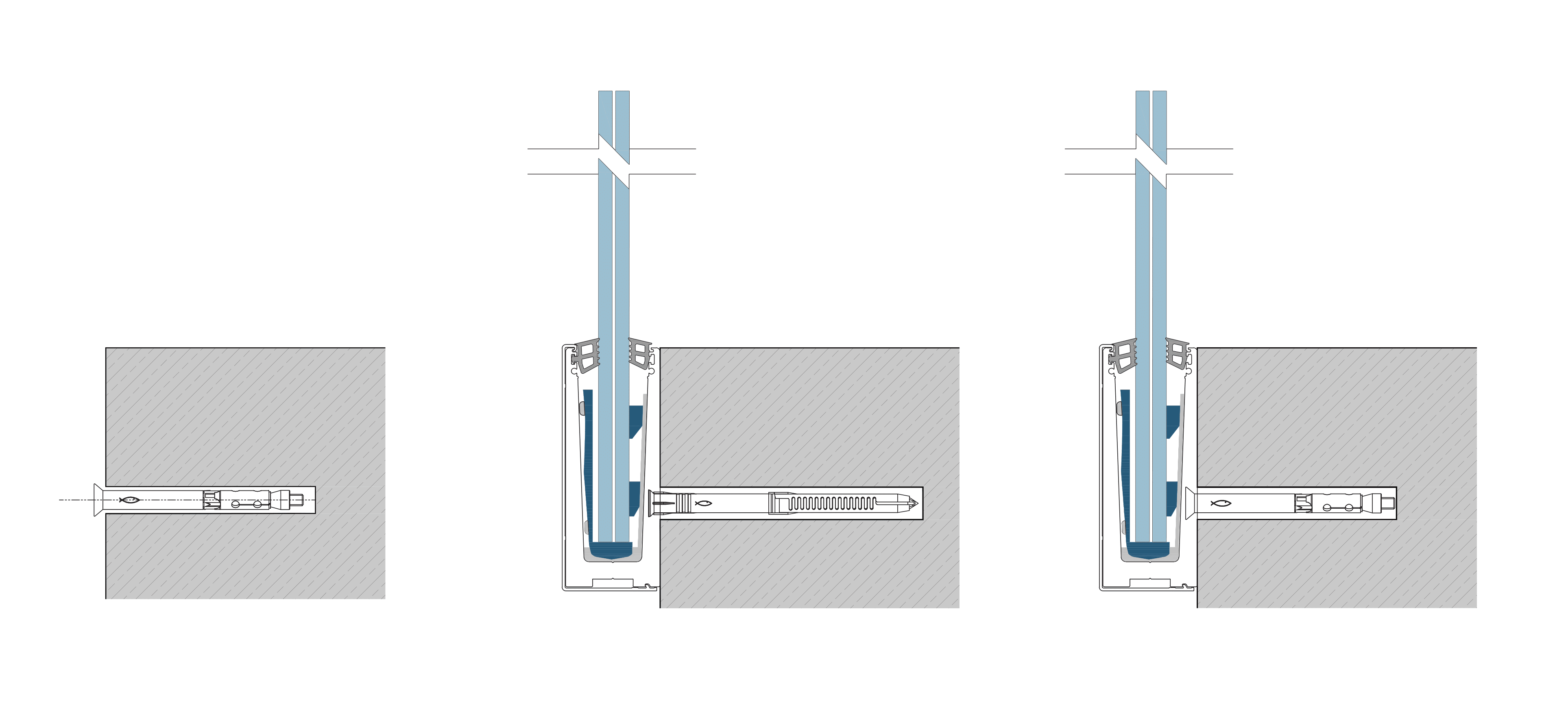

Options d'ancrage pour

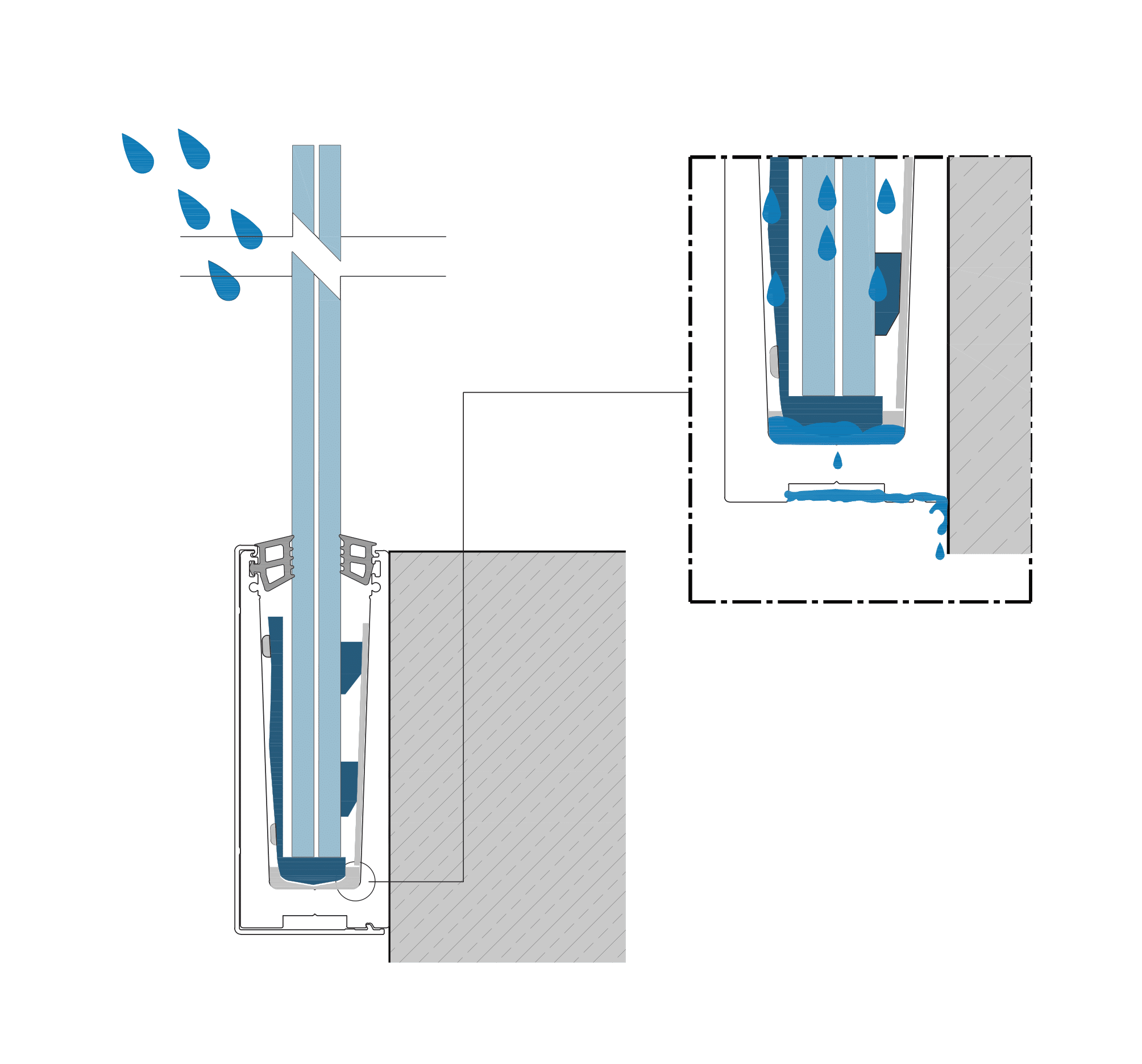

Détails du drainage

Résultats de la capacité de charge maximale du vent et de la poussée
